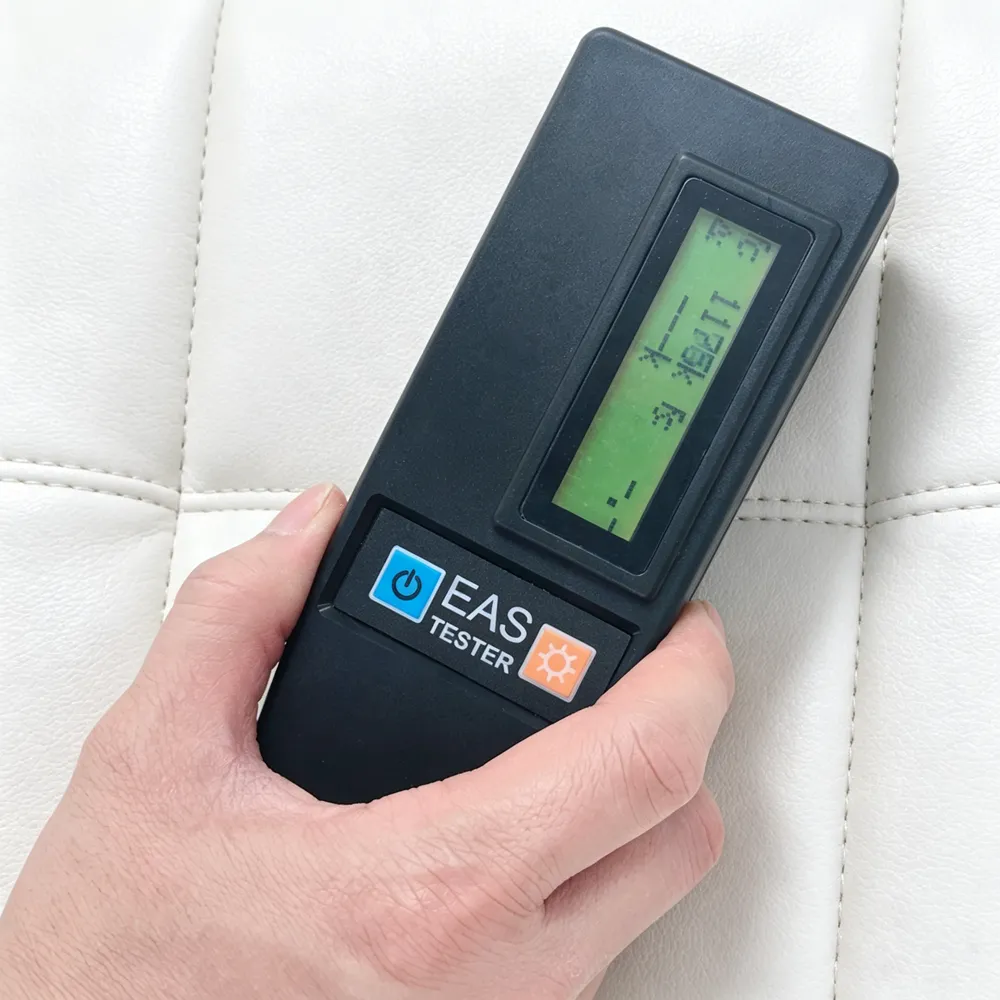

Place the EAS tester parallel to the transmitting antenna, press the switch, and all indicators of the transmitter will be displayed in digital form. It is small in size, light in weight, and easy to carry, making it a good assistant for maintenance personnel. Make maintenance services easier!
Technical parameters:

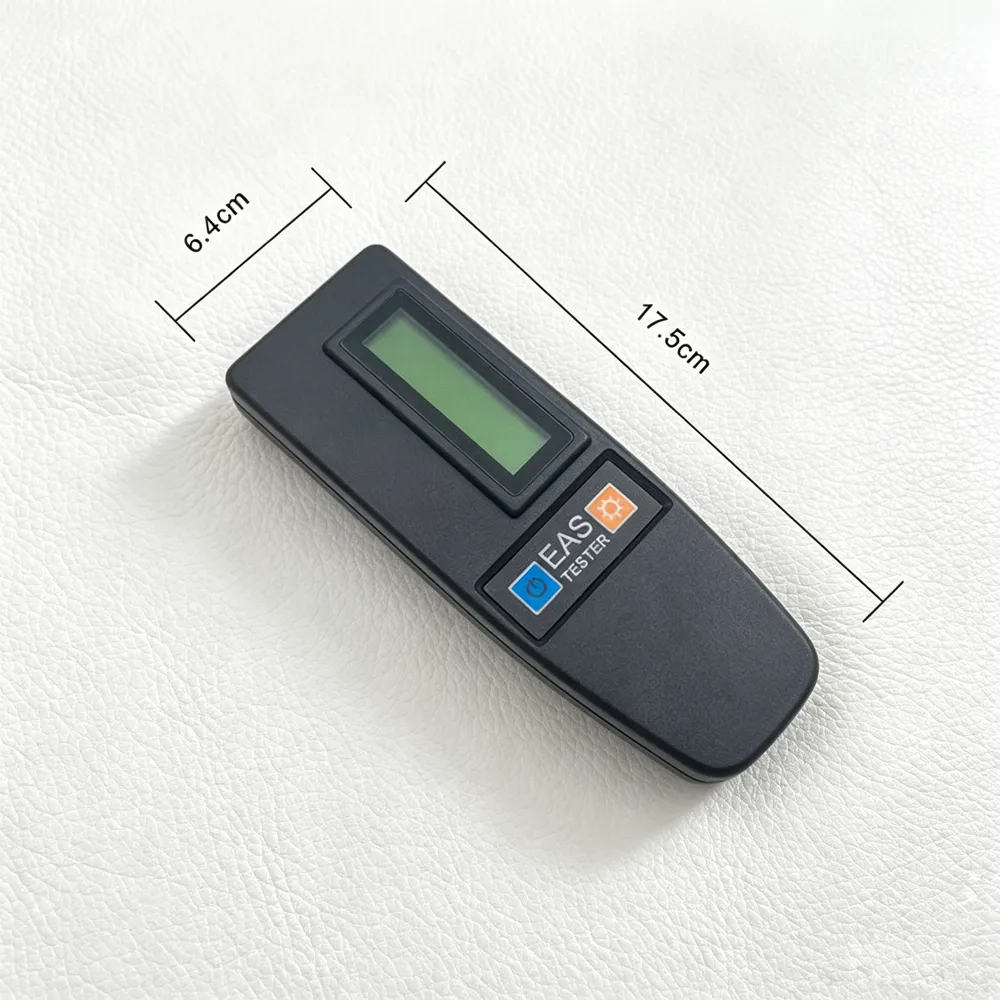

Instrument size: 70mm × 135mm × 25mm
Frequency testing range: Center frequency: 4-12MHz,
Scanning frequency: 0-100KHz,
Scanning bandwidth: 0-4MHz,
Accuracy is ± 1% (when the signal is strong)
Voltage and electricity display:
The working voltage is 3V (2 No. 5 batteries), and the battery level is displayed in the upper right corner of the screen. When the battery icon is completely empty, please replace the battery as soon as possible.
Instructions for use:
*When testing, please try to be as close to the antenna as possible, and the closer you are to the antenna, the more accurate the test will be
*Can test antennas with continuous sweep signals.
*When turning on, please press and hold the ON/OFF button for 1 second, and the subtitle will appear on the screen to release it – to avoid accidentally triggering in the package and causing battery loss.
Multiple shutdown modes:
This machine provides two shutdown methods
1. Always on: It is necessary to press and hold the ON/OFF button to turn off the device, suitable for people with good switching habits (the most energy-efficient)
2. No signal shutdown: After 10 seconds of no signal, the system automatically shuts down. (Recommended)
Refresh frequency:
High (1s), the display screen refreshes once every 1 second, and the screen shows that the measured signal is an instantaneous value
In the middle (2s), the display screen refreshes every 2 seconds, displaying the signal being measured between the two
Low (3s), the display screen refreshes every 3 seconds, and the screen shows that the measured signal is the average value (factory default）
