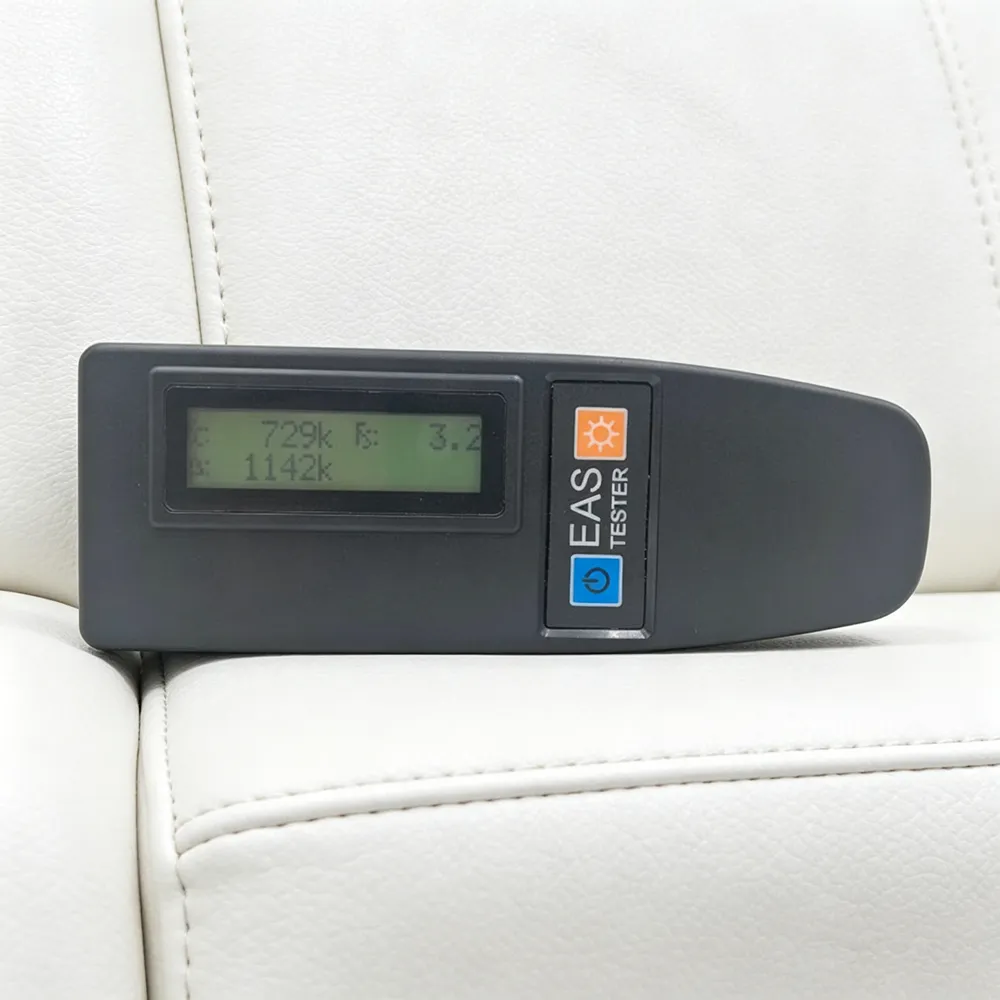

EAS RF Frequency Tester YG-JC0001 Portable EAS Tester

EAS RF Frequency Tester YG-JC0001

This portable EAS RF tester is a professional tool for EAS radio frequency anti-theft system installers and technicians.
It is widely used for on-site frequency detection of EAS mainboards, EAS antennas and RF security tags, to check whether the RF EAS system works normally.

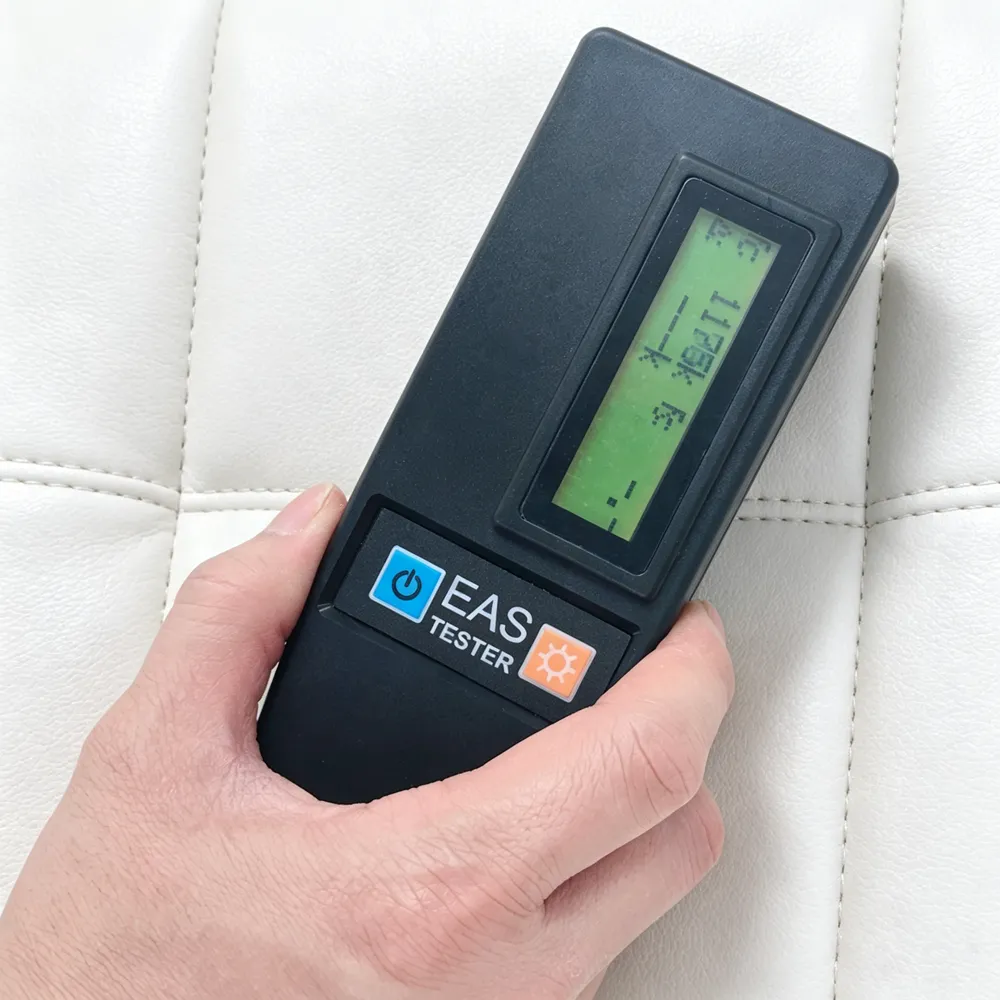

Compact handheld design, easy to carry for site construction. Digital LCD display, clear reading.

Application Scenarios:
EAS system installation, after-sales maintenance, EAS antenna debugging, EAS motherboard frequency inspection, supermarket security system testing.

Technical parameters:

Model: YG-JC0001
Power supply: 3V dry battery

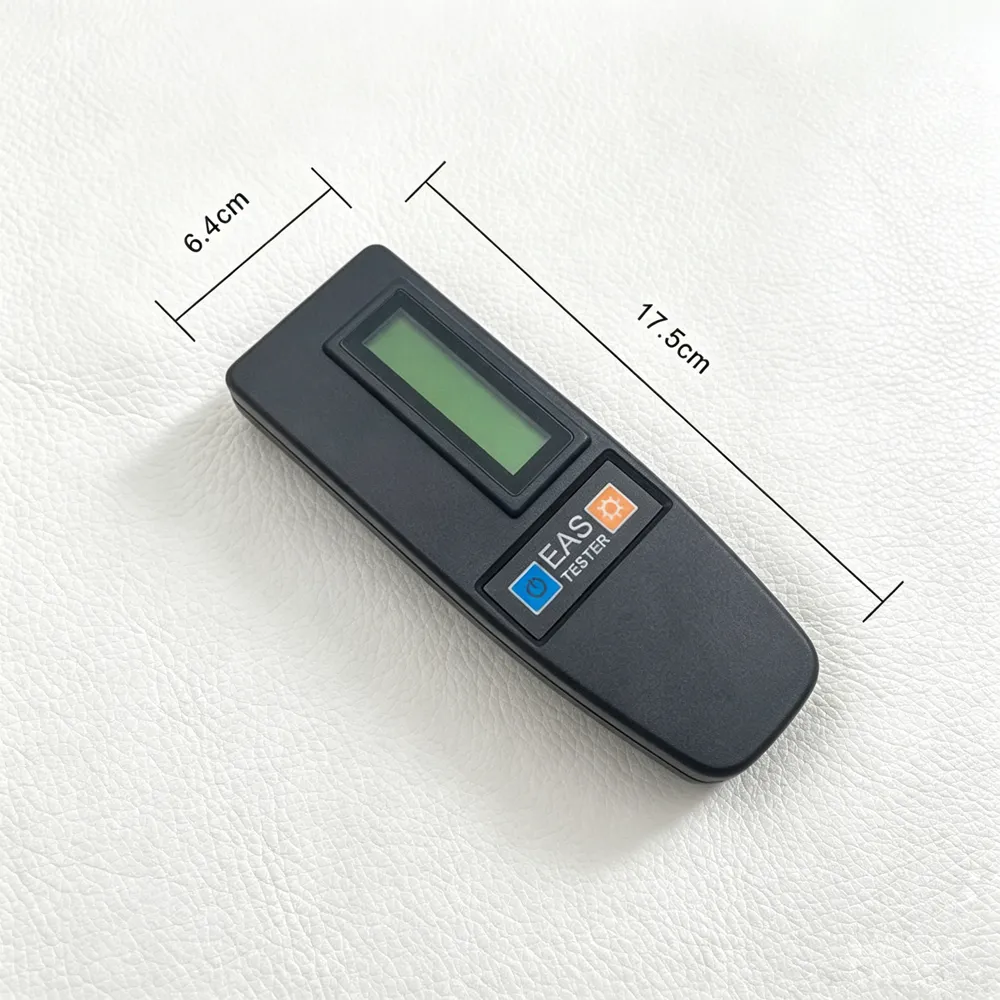

Instrument size: 70mm × 135mm × 25mm
Frequency testing range: Center frequency: 4-12MHz,
Scanning frequency: 0-100KHz,
Scanning bandwidth: 0-4MHz,
Measurement accuracy: ±(0.01% +1) (when the signal is strong)

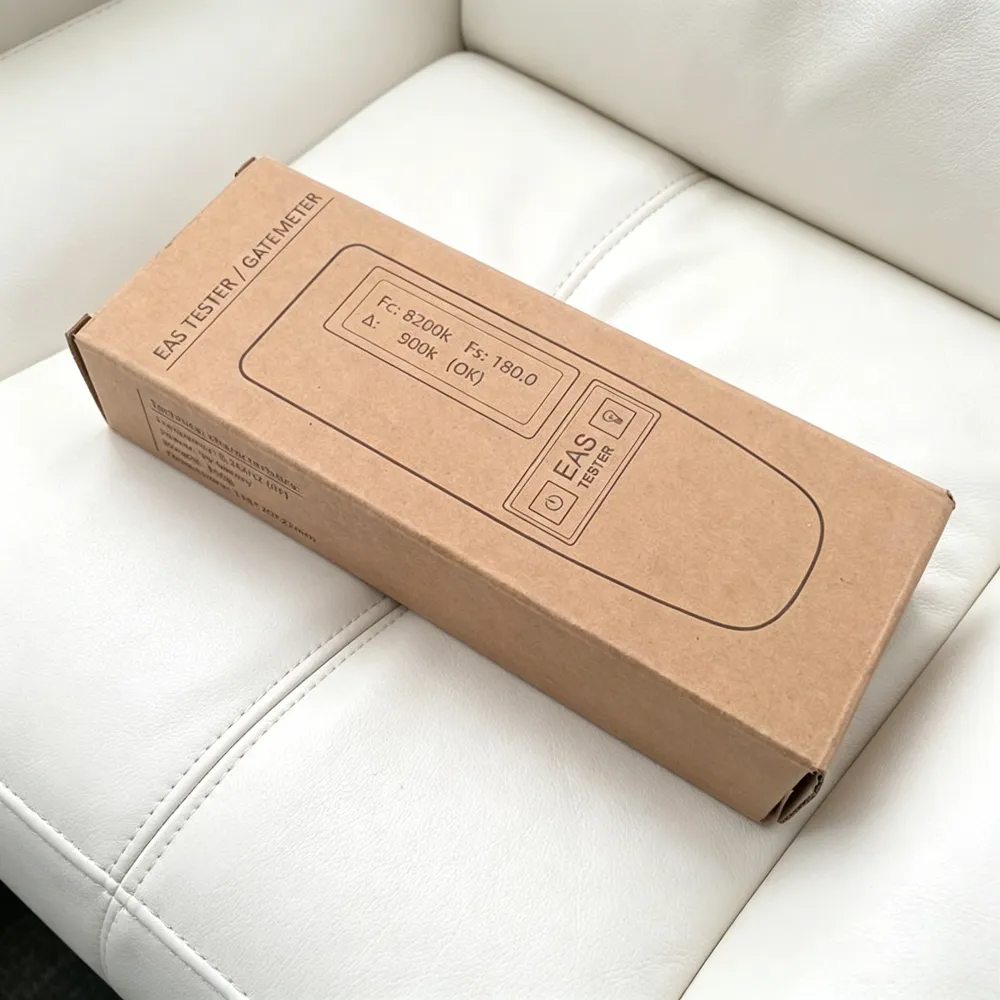

Package includes: 1 x EAS RF Tester (battery not included)
For RF EAS system only, Easy operation, no complicated setup

Voltage and electricity display:

The working voltage is 3V (2 No. 5 batteries), and the battery level is displayed in the upper right corner of the screen. When the battery icon is completely empty, please replace the battery as soon as possible.

Instructions for use:
*When testing, please try to be as close to the antenna as possible, and the closer you are to the antenna, the more accurate the test will be
*Can test antennas with continuous sweep signals.
*When turning on, please press and hold the ON/OFF button for 1 second, and the subtitle will appear on the screen to release it – to avoid accidentally triggering in the package and causing battery loss.

Multiple shutdown modes:

This machine provides two shutdown methods
1. Always on: It is necessary to press and hold the ON/OFF button to turn off the device, suitable for people with good switching habits (the most energy-efficient)
2. No signal shutdown: After 10 seconds of no signal, the system automatically shuts down. (Recommended)

Refresh frequency:

High (1s), the display screen refreshes once every 1 second, and the screen shows that the measured signal is an instantaneous value
In the middle (2s), the display screen refreshes every 2 seconds, displaying the signal being measured between the two
Low (3s), the display screen refreshes every 3 seconds, and the screen shows that the measured signal is the average value (factory default）



FAQ

Q: Is this tester for AM or RF?
A: This is only for RF EAS system, not for 58KHz AM system.
Q: Does it come with battery?
A: Battery is NOT included in the package.
Q: What is the power supply?
A: It works with 3V dry battery.
